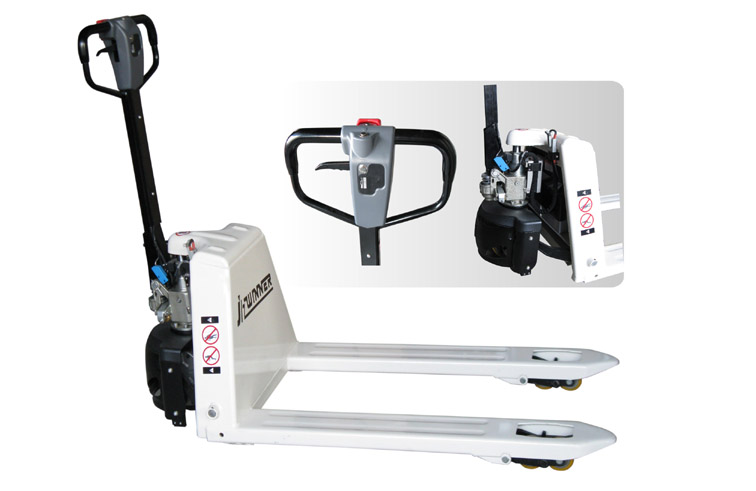

| Model Specification | WEPT20-20EHJ | ||
| Drive unit | Semi-electric | ||
| Operatortype | Walkie | ||
| Load capacity | Q (kg) | 2000 | |
| Service weight | kg | 145 | |
| Tyre type | PU | ||
| Lift height | h3 (mm) | 115 | |
| Fork lowered | h13 (mm) | 85 | |
| Overall length | l1 (mm) | 1580 | |
| Overall width | b1/ b2 (mm) | 560/685 | |
| Fork dimensions | s/ e/ l (mm) | 50/150/1150 | |
| Outside fork width | b5 (mm) | 560/685 | |
| Aisle width，1000×1200 pallet crossways | Ast (mm) | 1697 | |
| Aisle width，800×1200 pallet crossways | Ast (mm) | 1697 | |
| Outer turing radius | Wa (mm) | 1380 | |
| Travel speed，laden/unladen | km/ h | 3.5/4 | |
| Maximum gradeability, laden/ unladen | % | 2/6 | |
Drive motor rating S2 60 min | kW | 0.65 | |
| Battery voltage/rated capacity | V/ Ah | 24/30 | |
