詳細說明

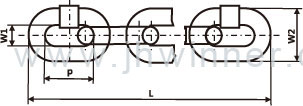

| Stork No | d×p(mm)Capacity | Width（mm) | Working load limit （ton) | Proof test（kn) | Min.Breaking load （kn) | |
| Inside width | Outside width | |||||
| 510404012 | 4×12 | 5 | 13+0.30 | 0.5 | 12 | 20.2 |
| 510405015 | 5×15 | 6.25 | 17+0.38 | 0.8 | 19 | 31.6 |
| 510406018 | 6×18 | 7.5 | 20+0.45 | 1.1 | 27 | 45.4 |
| 510407021 | 6.3×19 | 7.88 | 21+0.48 | 1.25 | 30 | 50 |
| 510408024 | 7×21 | 8.75 | 23+0.35 | 1.5 | 37 | 61.6 |
| 510409033 | 8×24 | 10 | 26+0.60 | 2 | 48 | 80.6 |
| 510410035 | 9×27 | 11.25 | 30+0.68 | 2.5 | 61 | 102 |
| 510410030 | 10×30 | 12.5 | 33+0.75 | 3.2 | 76 | 126 |
| 510411034 | 11×34 | 13.75 | 36+0.83 | 3.8 | 92 | 154 |
| 510413039 | 13×39 | 16.25 | 43+0.98 | 5.4 | 128 | 214 |
