詳細(xì)說(shuō)明

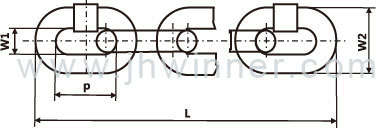

| Stork No | d×p(mm)Capacity | Width（mm) | Working load limit （ton) | Proof test（kn) | Min.Breaking load （kn) | |
| Inside width | Outside width | |||||
| 510204012 | 4×12 | 5 | 13+0.30 | 0.63 | 15.7 | 25.1 |
| 510205015 | 5×15 | 6.25 | 17+0.38 | 1.0 | 24.5 | 39.3 |
| 510206018 | 6×18 | 7.5 | 20+0.45 | 1.45 | 35.3 | 56.5 |
| 510207021 | 6.3×19 | 7.88 | 21+0.48 | 1.6 | 39 | 62.3 |
| 510208024 | 7×21 | 8.75 | 23+0.35 | 2 | 48 | 76.9 |
| 510209033 | 8×24 | 10 | 26+0.60 | 2.5 | 62.8 | 101 |
| 510210035 | 9×27 | 11.25 | 30+0.68 | 3.15 | 79.5 | 127 |
| 510210030 | 10×30 | 12.5 | 33+0.75 | 4.0 | 98.2 | 157 |
| 510211034 | 11×34 | 13.75 | 36+0.83 | 4.8 | 118.6 | 190 |
| 510213039 | 13×39 | 16.25 | 43+0.98 | 6.7 | 166 | 265 |
